- 【For Single Actuator Systems】15170-001 LED Indicator Integrated Tactile Switch Kit with Pigtail is compatible with Lenco Marine Single Actuator Trim Tabs. Also suitable for standard and HD performance trim tabs with single actuators, ensuring broad compatibility and seamless integration into existing systems.
- 【Advanced LED Indicators & Precision Control】 Equipped with 2 high-intensity LED indicators, this system provides precise and clear feedback on trim tab positions at all times, while the integrated control box functionality enhances overall accuracy and control.
- 【User-Friendly Design, Better Operation】 Equipped with a built-in retractor for automatic neutral positioning, this system utilizes a photo eye sensor that reads ambient light and adjusts the LED intensity for optimum viewing in all lighting conditions. Additionally, the backlit keypad provides enhanced visibility for effortless operation at night.
- 【Streamlined Plug & Play Installation】 Enjoy a straightforward installation with our included manual. Simply use a 2 1/16” (5.24 cm) hole saw to cut a circular opening at your chosen helm location. Insert the keypad, feed the wiring through the bezel nut, and hand-tighten it on the backside. Connect the wiring harnesses and the orange ignition sense wire to separate power sources, ensuring quick and efficient setup.
- 【Comprehensive Specifications】 Includes a 30" (76.2 cm) wiring harness from the switch bezel, a 36" power pigtail, a keypad dimension of 2.75" x 2.75" with a 2 1/16" hole cut-out, and requires 4.08" clearance, all designed within a sleek, low-profile form factor.
- 【100% Satisfaction Guarantee】 Your satisfaction is our priority. We strive to give our customers excellent service. All Sixcow products support 30-Day money-back guarantee, 12-Month warranty for quality-related issues. Simply return it for your warranty.

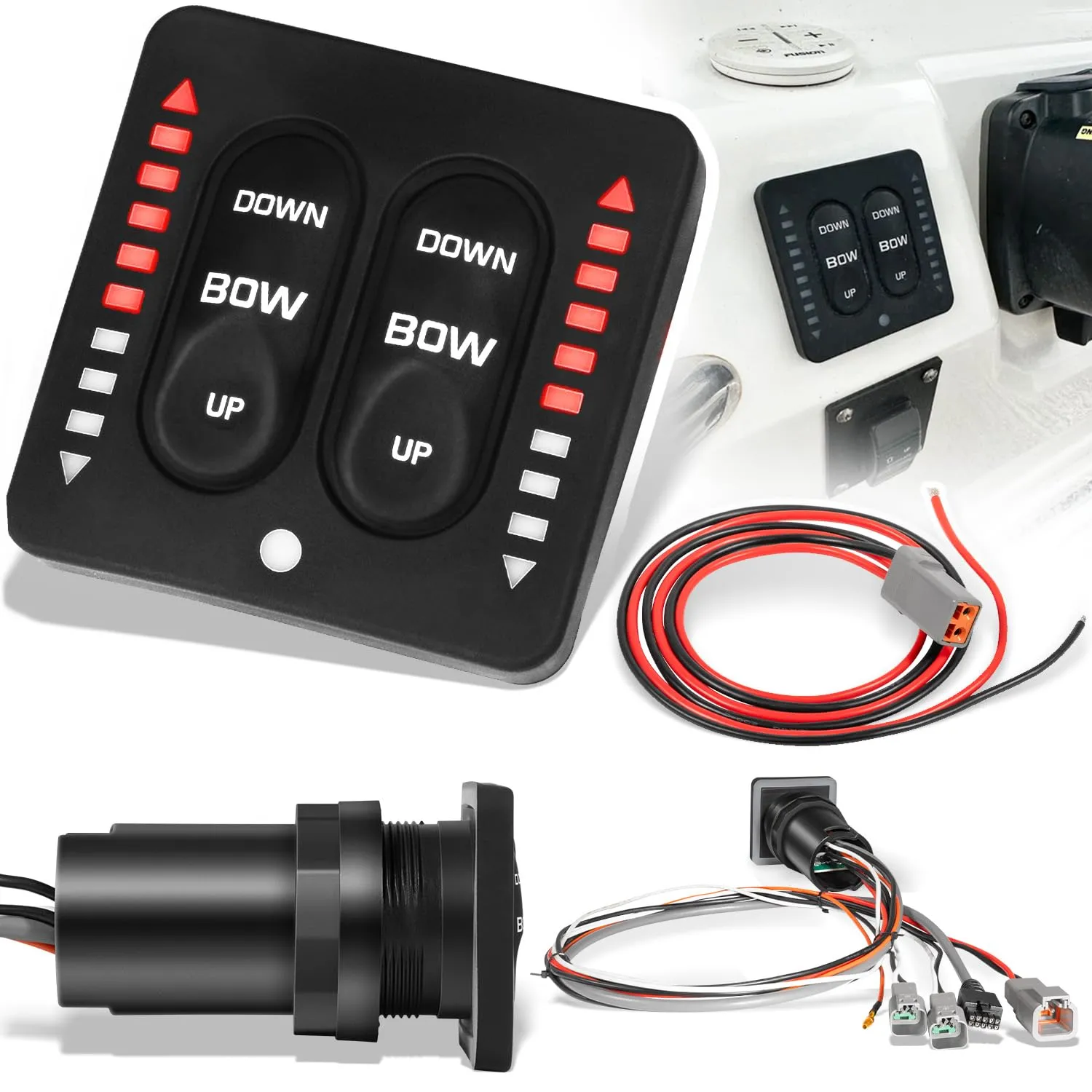

15170-001 LED Indicator Integrated Tactile Switch Kit w/ Pigtail f/ Single Actuator System
15170-001 LED Indicator Integrated Tactile Switch technology improves accuracy and integrates the control box functionality into the key pad bezel. LED indicator lights let you know exactly where your trim tabs are at all times.
Backlit keypad automatically illuminates graphics for night viewing. Photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.
Special Features:
Instant response , Built-in retractor
Low profile key pad design
Self-contained key pad with waterproof Plug & Play Deutsch connectors
Wiring harness length: 30" (76.2 cm) from the back of the switch bezel, 36" power pigtail
2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75"
4.08" clearance required from the back of the key pad's mounting location
2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
Photo Eye for optimum viewing in all light conditions
Backlit key pad for optimum viewing at night
Simple, quick, Plug & Play installation.
1. At the helm, determine where the tactile key pad will be installed, locate the supplied switch template, and secure to helm. Cut a circular opening using a 2 1/16” (5.24 cm) hole saw (Hole must be 2 1/16”). Before cutting, make sure the area inside the helm is clear of wires and other equipment that could be damaged.
2. Place the key pad & wiring into 2 1/16” hole, feed wires through bezel nut and hand tighten the key pads bezel nut onto the backside of helm.
3. Each switch kit has a retractor wire (orange) that must be connected to an on/off power source. The tabs retract to the up position when power, or analog signal is removed, and then shuts the system down into stand-by mode.
Orange Wire Connection Options
Connect to Key switch or ON/OFF power source. Do not install the orange wire and main power on the same mechanical switch.
- Product Dimensions : 10 x 7 x 2 inches; 1.04 Pounds
- Date First Available : October 29, 2024
- Manufacturer : sixcow
