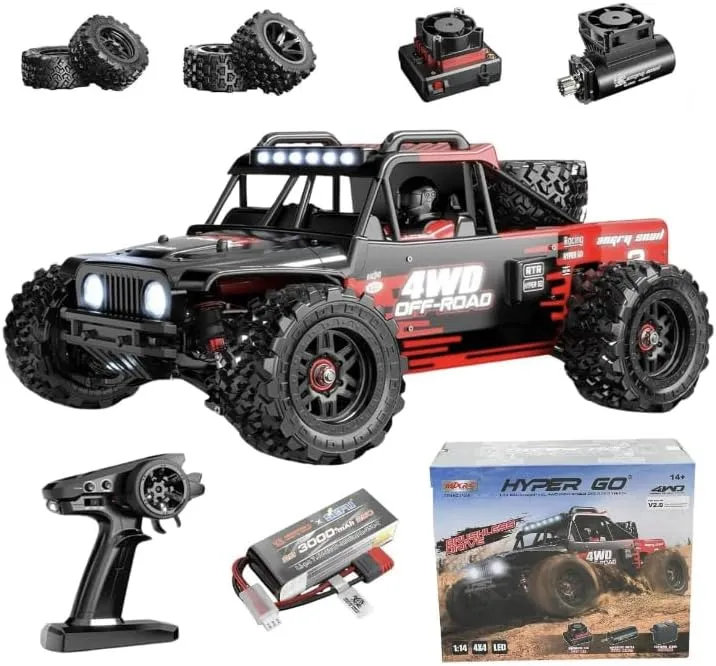

- The MJX14209 is an impressive remote-controlled car model designed for enthusiasts and hobbyists alike. With a sleek product model No. of 14209 and a 1/14 scale, this RC car offers a thrilling experience with a maximum speed of 80km/h. The remote control distance of 120m provides ample range for maneuvering the car with precision. Users can enjoy up to 15 minutes of non-stop action, and when it's time for a recharge, the process is quick, taking only 4 hours using a 5V 2A charger through the convenient USB charging cable.
- In terms of dimensions and specifications, the MJX14209 showcases a compact product size of 320*210*140mm. The wheelbase measures 177mm, with a wheelbase of 198mm and a tire diameter of 75mm. Weighing in at 1490g, the car strikes a balance between agility and durability, ensuring a dynamic and sturdy performance.
- The MJX14209 boasts a powerful configuration, featuring a brushless motor (2852 4400KV, 4 Poles) for enhanced performance. The motor is equipped with an aluminum heat sink and fan for efficient cooling. The 45A brushless ESC with a metal heat sink ensures smooth operation, while the 2.2kg torque servo with a speed of 0.13 Sec/60° provides precise control.
- The remote control operates at 2.4GHz and is powered by two 1.5AA batteries. The car's power source is a 7.4V 3000mAh 2S 25C battery, ensuring a consistent and reliable energy supply.
- Functional features of the MJX14209 include an all-metal hydraulic shock absorber, providing stability and resilience on various terrains. The car is equipped with a metal anti-collision head for added protection. The all-metal transmission system, including a metal gear differential, ensures durability and efficient power transfer.
- The car's versatility is highlighted by the compatibility with a 3S battery, allowing users to experience a speed boost of over 70km/h. The independent 45A brushless ESC and 2852 4400KV four-pole brushless motor contribute to the car's exceptional performance.
- Additionally, the standard independent receiver makes modifications easy for those looking to personalize their RC experience. The MJX14209 is a high-performance, feature-packed RC car that combines speed, durability, and customization options for an exhilarating driving experience.
- Basic parameters :
Product model No.: 14209
Scale: 1/14
Maximum speed: 80km/h
Remote control distance: 120m
Maximum use time: 15min
Charging time: 4h (using 5V 2A charger)
Charging method:USB charging cable
- Dimensions and Specifications:
MJX14209:
Product size (mm) 320*210*140
Wheelbase (mm) 177mm
Wheel base (mm) 198mm
Tire diameter (mm) 75mm
Vehicle weight 1490g
- Configure:
Motor Specifications: Brushless Motor 2852 4400KV 4 Poles
Motor cooling aluminum heat sink fan
ESC 45A brushless ESC (metal heat sink)
Servo 2.2kg torque, 0.13 Sec/60° speed
Remote control 2.4GHz
Remote control battery 1.5AA*2
Car Battery Specifications 7.4V 3000mAh 2S 25C
- Functional features:
All-metal hydraulic shock absorber;
Standard 2S battery, 45km/h, if change to 3S battery, speed up to 70 km/h
45A independent brushless ESC 2852 4400KV four-pole brushless motor;
Metal anti-collision head;
All-metal transmission system (metal gear differential);
Standard independent receiver, easy to modify.
