- Release characteristic: B.
- Number of poles (total): 1.
- Number of protected poles: 1.
- Rated current: 16 A.
- Rated voltage: 230 V.

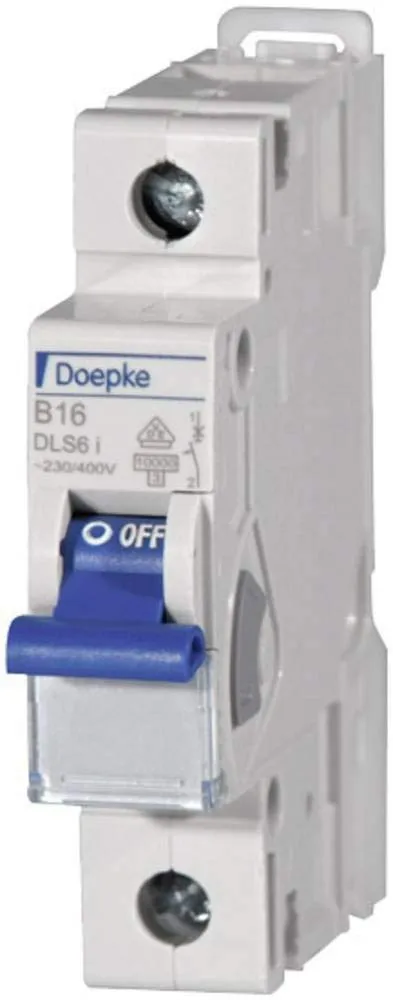

Circuit breakers (MCB) type DLS 6 h are primarily used for the over-current protection of cables and lines according to VDE 0100-430 and the protection against electrical shock according to VDE 0100-410. Their rated breaking capacity is designed for medium short circuit distribution and final circuits, such as residential and purpose building. However, they can also be used with restrictions for device protection. Over-current tripping occurs in currents in the overload range due to an inert, heat-sensitive bimetallic release and short-circuit currents due to an electromagnetic quick release. Total pole number is 1. Number of secured poles is 1. Rated current is 16 A. Rated voltage is 230 V. Rated switching capacity Icn according to EN 60898 at 230 V is 10 kA. Rated switching capacity Icn according to EN 60898 at 400 V is 10 kA. Rated switching capacity Icu according to IEC 60947-2 at 230 V is 0 kA. -
- Is Discontinued By Manufacturer : No
- Product Dimensions : 0.39 x 0.39 x 0.39 inches; 3.88 ounces
- Date First Available : January 11, 2025
- Manufacturer : Doepke
