- Specifications: Input voltage: 9V-30V; Output voltage: 36V; Power 180W Max ,Current 5A,Working temperature: -40°C-85°C,Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
- Applications: It is widely used in various 36V electronic equipment,golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, LED, instrument,car audio,car refrigerator, car washing machine, car alarm, car navigation, etc.This voltage converter does not have a constant current and cannot be used for charging
- Features: This product is a kind of constant voltage converter, which is used to step up the low voltage DC to high voltage DC.The product has the characteristics of small volume, light weight, high efficiency, no noise and no radiation.Synchronous Rectification Technology, multiple intelligent protection functions, conversion efficiency up to 93%, good stability and easy installation.

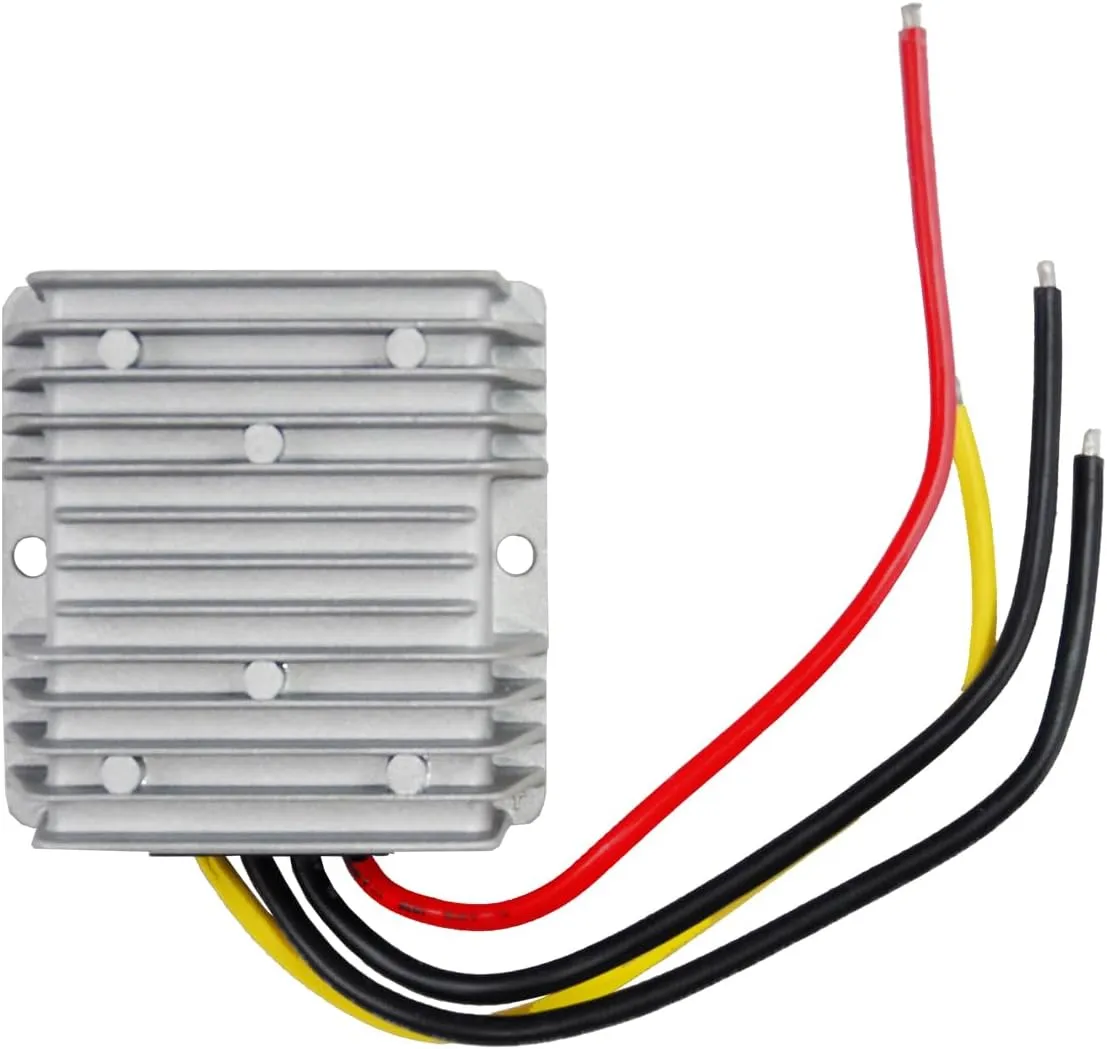

- Installation: Easy to install, just connect the red and black power wires directly to the battery(Red : Input Black : Input -). Please pay attention to the positive and negative poles when connecting the power supply.The yellow wire connects to the positive pole of the electrical device, and the blue wire or another black wire connects to the negative pole of the electrical device.
Specification:
Input voltage range: 9V - 30V DC
Output voltage: 36V DC
Output current: 5A(max), 180W
Working temperature: -25°C ~ 80°C
Conversion Efficiency: up to 95%
Dimensions: 74 x 74 x 32mm
Weight: 300g
Application:
Solar,Starlink,Golf Cart,E-Bike,LED,vehicles, security systems, telecommunications, medical equipments, instruments etc
Features:
Industry grade DC 12V/24V to 36V step up converter
auto protect over voltage, over current, over temperature, short circuit, ,can work in normal condition when restored.
100% waterproof & anti-shock protection
Ultra compact size, light weight
Auto-recovery when device is back to normal operating
Stable and reliable performance
Simple to install
Note:
1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2. In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment.
